MicroStation Design Plane Center Coordinates

New V8 English Seed Files

There is one V8 Seed File for each CCS NAD 83 Zone:

Map outlining counties in Zone 1 which are Del Norte, Humbolt, Trinity, Siskiyou, Shasta, Tehama, Modoc, Lassen, and Plumas

Zone 1 - NAD 83

 X (Center) Y (Center) X (Global Origin) Y (Global Origin) Z
6561600 2187500 6346851.6352 1972751.6352 -214748.3648

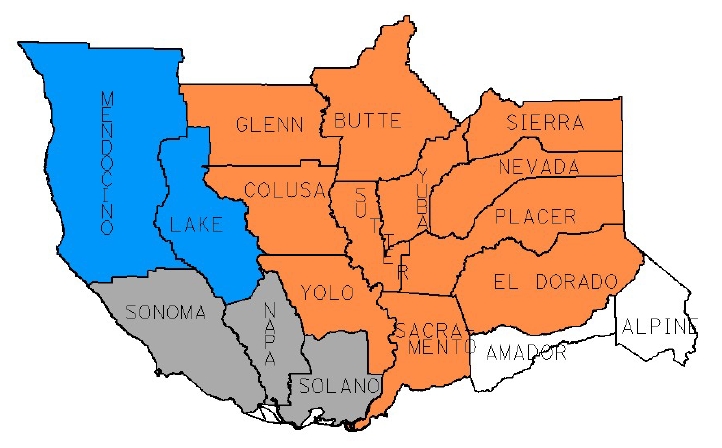

Map outlining counties in Zone 2 which are Mendocino, Sonoma, Lake, Napa, Solano, Glenn, Colusa, Yolo, Sacramento, Sutter, Yuba, Butte, Sierra, Nevada, Placer, El Dorado, Amador, and Alpine

Zone 2 - NAD 83

X (Center) Y (Center) X (Global Origin) Y (Global Origin) Z
6561600 2156800 6346851.6352 1942051.6352 -214748.3648

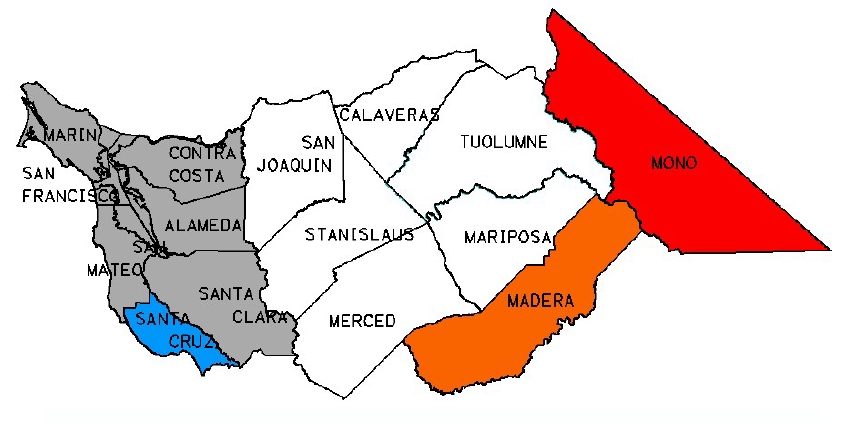

Map outlining counties in Zone 3 which are Marin, San Francisco, San Mateo, Santa Cruz, Contra Costa, Alameda, Santa Clara, San Joaquin, Stanislaus, Merced, Calaveras, Tuolumne, Mariposa, Madera, and Mono



Zone 3 - NAD 83

X (Center) Y (Center) X (Global Origin) Y (Global Origin) Z
6561600 2095900 6346851.6352 1881151.6352 -214748.3648

Map outlining counties in Zone 4 which are Monterey, San Benito, Fresno, Kings, Tulare, and Inyo

Zone 4 - NAD 83

X (Center) Y (Center) X (Global Origin) Y (Global Origin) Z
6561600 2110900 6346851.6352 1896151.6352 -214748.3648

Map outlining counties in Zone 5 which are San Luis Obispo, Santa Barbara, Kern, Ventura, Los Angeles, and San Bernardino

Zone 5 - NAD 83

X (Center) Y (Center) X (Global Origin) Y (Global Origin) Z
6561600 2095700 6346851.6352 1880951.6352 -214748.3648

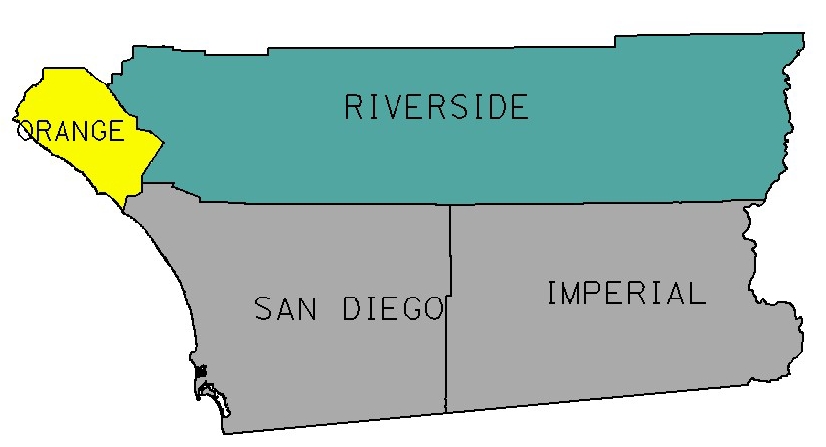

Map outlining counties in Zone 6 which are Orange, Riverside, Imperial, and San Diego

Zone 6 - NAD 83

X (Center) Y (Center) X (Global Origin) Y (Global Origin) Z
6561600 2065100 6346851.6352 1850351.6352 -214748.3648





Last Updated: August 22, 2018
