(a) All fixed ladders shall be approved as defined in Section 3206 of the General Industry Safety Orders.
(b) Definitions.
Cage. A cage is a guard that may be referred to as a cage or basket guard, which is an enclosure that is fastened to the side rails of the fixed ladder or to the structure to encircle the climbing space of the ladder for the safety of the person who must climb the ladder.
Cleats. Cleats are ladder crosspieces of rectangular cross section placed on edge on which a person may step in ascending or descending.
Fastenings. A fastening is a device to attach a ladder to a structure, building, or equipment. Fixed, hinged, bearing, or slide-type fastenings may be used.
Fixed Ladder. A fixed ladder is a ladder permanently attached to a structure, building, or equipment. Ladders referred to in this code shall be construed to be fixed ladders.
Grab Bars. Grab bars are individual handholds placed adjacent to or as an extension above ladders for the purpose of providing access beyond the limits of the ladder.
Individual-Rung Ladder. An individual-rung ladder is a fixed ladder each rung of which is individually attached to a structure, building, or equipment.
Ladder. A ladder is an appliance usually consisting of two side rails joined at regular intervals by crosspieces called steps, rungs, or cleats, on which a person may step in ascending or descending.
Ladder Safety Device. A ladder safety device is any device, other than a cage or well, designed to eliminate or reduce the possibility of accidental falls and which may incorporate such features as life belts, friction brakes, and sliding attachments.
Pitch. Pitch is the included angle between the horizontal and the ladder, measured on the opposite side of the ladder from the climbing side.
Rail Ladder. A rail ladder is a fixed ladder consisting of side rails joined at regular intervals by rungs or cleats and fastened in full length or in sections to a building, structure, or equipment.
Railings. Railings when referred to in this section shall be any one or a combination of those railings defined in Section 3210.
Rungs. Rungs are ladder crosspieces on which a person may step in ascending or descending.
Side-Step Ladder. A side-step ladder is one from which a person getting off at the top must step sideways from the ladder in order to reach the landing, such as shown in Fig. 3.
Steps. Steps are the flat crosspieces of a ladder on which a person may step in ascending or descending.
Through Ladder. A through ladder is one from which a person getting off at the top must step through the ladder in order to reach the landing, such as shown in Fig. 2.
Well. A well is a permanent complete enclosure around a fixed ladder, which is attached to the walls of the well. Proper clearances for a well will give the person who must climb the ladder the same protection as a cage. (See (g)(6) and Fig. 1.)
(c) Design Considerations. All ladders, appurtenances, and fastenings shall be designed to meet the following load requirements:
(1) The minimum design live load shall be a single concentrated load of 200 pounds.
(2) The number and position of additional concentrated live-load units of 200 pounds each as determined from anticipated usage of the ladder shall be considered in the design.
(3) The live loads imposed by persons occupying the ladder shall be considered to be concentrated at such point or points as will cause the maximum stress in the structural member being considered.
(4) The weight of the ladder and attached appurtenances together with the live load shall be considered in the design of rails and fastenings.
(5) All wood parts of fixed ladders shall meet the requirements of Section 3278.
(6) For fixed ladders consisting of wood side rails and wood rungs or cleats, used at a pitch in the range 75 degrees to 90 degrees, and intended for use by no more than one person per section, single ladders or cleat ladders as described in Section 3278 are acceptable.
(d) Specific Features.
(1) All rungs shall have a minimum diameter of 3/4 inch for metal ladders, except as covered in (e)(1) and a minimum diameter of 1 1/8 inches for wood ladders. Materials other than steel, aluminum, and wood are acceptable provided the design, fabrication, and erection are in accordance with recognized design practice and meet the design requirements of Section 3277(c) and Section 3277(d)(11) when applicable.
(2) The distance between the top surfaces of rungs, cleats, and steps shall not exceed 12 inches and shall be uniform throughout the length of the ladder.
EXCEPTIONS: 1. Manholes and Underground Vaults. Step spacing shall not exceed 16 inches between the top surfaces of rungs and shall be uniform throughout the length of the ladder.
2. The vertical distance of the first rung from ground level may be as high as 14 inches.
(3) The minimum clear length of rungs or cleats shall be 16 inches.
EXCEPTION: Manholes and Underground Vaults. Clear length of rungs or cleats shall not be less than 14 inches.
(4) Rungs, cleats, and steps shall be free of splinters, sharp edges, burrs, or projections which may be a hazard.
(5) The rungs of an individual-rung ladder shall be so designed that the climber's foot cannot slide off the end of a rung. A suggested design for metal rungs is shown in Fig. 4.
(6) Side Rails. Side rails which might be used as a climbing aid shall be of such cross sections as to afford adequate gripping surface without sharp edges, splinters, or burrs.
(7) Fastenings. Fastenings shall be an integral part of fixed ladder design.
(8) Splices. All splices made by whatever means shall meet design requirements as noted in (c). All splices and connections shall have smooth transition with original members and with no sharp or extensive projections.
(9) Electrolytic Action. Adequate means shall be employed to protect dissimilar metals from electrolytic action when such metals are joined.
(10) Welding. All welding shall be in accordance with procedures of the American Welding Society, or equivalent.
(11) Embedment. Individual rungs of ladders installed in manholes and underground vaults having a wall thickness which will not permit at least 6 inches of embedment shall have anchoring devices that will provide the minimum design load requirements of Section 3277(c) in addition to the following requirements:
(A) The minimum design live load shall be a single concentrated load of 300 pounds.
(B) Steps or rungs shall be embedded in the wall a minimum distance of 3 inches.
(e) Protection from Deterioration.
(1) Metal. Metal ladders and appurtenances shall be painted or otherwise treated to resist corrosion and rusting when location demands. Ladders formed by individual metal rungs imbedded in concrete, which serve as access to pits and to other areas under floors, are frequently located in an atmosphere that causes corrosion and rusting. To increase rung life in such atmosphere, individual metal rungs shall have a minimum diameter of 1 inch or shall be painted or otherwise treated to resist corrosion and rusting.
(2) Wood. Wood ladders, when used under conditions where decay may occur, shall be treated with a nonirritating preservative, and the details shall be such as to prevent or minimize the accumulation of water on wood parts. Wood ladders shall not be painted but may be coated with a clear sealant after inspection has assured that all requirements of 3278 have been met.
NOTE:Paint does not act as a wood preservative.
(3) Combined Materials. When different types of materials are used in the construction of a ladder, the materials used shall be so treated as to have no deleterious effect, one upon the other.
(f) Clearance.
(1) On fixed ladders, the perpendicular distance from the center line of the rungs to the nearest permanent object on the climbing side of the ladder shall be 36 inches for a pitch of 76 degrees, and 30 inches for a pitch of 90 degrees (Fig. 5), with minimum clearances for intermediate pitches varying between these two limits in proportion to the slope, except as provided in (3) and (7).
EXCEPTION: Manholes and Underground Vaults.
(2) A clear width of at least 15 inches shall be provided each way from the center line of the ladder in the climbing space, except when cages or wells are necessary. (See (g)(2) and Fig. 5.)
EXCEPTION: Manholes and Underground Vaults.
(3) Ladders equipped with cage or basket shall be excepted from the provisions of (1) and (2), but shall conform to the provisions of (g)(5). Fixed ladders in smooth-walled wells shall be excepted from the provisions of (1), but shall conform to the provisions of (g)(6).
(4) The distance from the center line of rungs, cleats, or steps to the nearest permanent object in back of the ladder shall be not less than 7 inches (Fig. 5), except that when unavoidable obstructions are encountered, minimum clearances as shown in Fig. 6 shall be provided.
EXCEPTIONS: (1) Manholes and Underground Vaults. The clearance from the center line of rungs or steps shall not be less than 5 inches.(2) Obstructions. At those locations where unavoidable obstructions are encountered, minimum clearances shall be as shown in Figure 6.
(5) The distance from the center line of the grab bar to the nearest permanent object in back of the grab bars shall be not less than 4 inches. Grab bars shall not protrude on the climbing side beyond the rungs of the ladder which they serve.
(6) The step-across distance from the nearest edge of ladder to the nearest edge of equipment or structure shall be not more than 12 inches, or less than 2 1/2 inches (Fig. 7).
(7) Counterweighted hatch covers shall open a minimum of 60 degrees from the horizontal. The distance from the center line of rungs or cleats to the edge of the hatch opening on the climbing side shall be not less than 24 inches for offset wells or 30 inches for straight wells. There shall be no protruding potential hazards within 24 inches of the center line of rungs or cleats; any such hazards within 30 inches of the center line of the rungs or cleats shall be fitted with deflector plates placed at an angle of 60 degrees from the horizontal as indicated in Fig. 8. The relationship of a fixed ladder to an acceptable counterweighted hatch cover is illustrated in Fig. 9.
(g) Cages or Wells.
(1) Construction. Cages or wells shall be built as shown on the applicable drawings, covered in detail in Figs. 1, 10, and 11, or of equivalent construction.
EXCEPTION: Chimney ladders and manholes and underground vaults.
(2) Dimensions and Maximum Length. Cages or wells (except as provided under (5)) conforming to the dimensions shown in Figs. 1, 10, and 11 shall be provided on ladders of more than 20 feet to a maximum unbroken length of 30 feet.
EXCEPTIONS: (1) Fixed ladders on fire hose drying towers are not required to have a cage, well, offset platform, or ladder safety device if they do not exceed 30 feet in length and provided their use is restricted to trained fire fighters or others equally trained in ladder use.(2) Fixed ladders on outdoor advertising structures, where employees wear and use approved safety belts and lanyards which can be utilized if a rest period is required.
(3) Top of Cage. Cages shall extend a minimum of 42 inches above the top of landing, unless other acceptable protection is provided.
(4) Bottom of Cage. Cages shall extend down the ladder to a point not less than 7 feet nor more than 8 feet above the base of the ladder, with bottom flared not less than 4 inches, or portion of cage opposite ladder shall be carried to the base.
(5) Size of Cage. Cages shall not extend less than 27 nor more than 30 inches from the center line of the rungs of the ladder. Cage shall not be less than 27 inches in width. The inside shall be clear of projections. Vertical bars shall be located at a maximum spacing of 9 1/2 inches, center-to-center around the circumference.
(6) Ladder Wells. Ladder wells shall have a clear width of at least 15 inches measured each way from the center line of the ladder. (See Fig.1.) Smooth-walled wells shall be a minimum of 27 inches from the center line of rungs to the well wall on the climbing side of the ladder. Where other obstructions on the climbing side of the ladder exist, there shall be a minimum of 30 inches from the center line of the rungs.
(h) Pitch.
(1) Preferred Pitch. The preferred pitch of fixed ladders shall be considered to come in the range of 75 to 90 degrees with the horizontal. (See Fig. 12.)
(2) Substandard Pitch. Fixed ladders shall be considered as substandard if they are installed within the substandard pitch range of 60 to 75 degrees with the horizontal. Substandard fixed ladders shall be permitted only where it is found necessary to meet conditions of installation. (See Fig. 12.) This substandard pitch range shall be considered as a critical range to be avoided, if possible.
(3) Scope of Coverage in This Code. This code covers only fixed ladders within the pitch range of 60 to 90 degrees with the horizontal. (See Fig. 12.)
(4) Pitch Greater Than 90 Degrees. Ladders having a pitch in excess of 90 degrees with the horizontal shall not be permitted.
EXCEPTION: Manholes and Underground Vaults. Individual rung ladders installed in the walls of conical top sections of manholes and underground vaults shall be allowed to exceed a pitch of 90 degrees for a distance of not more than 2 rungs or steps in the conical top sections. The deviation from 90 degrees shall not exceed 6 inches. (See Figure 13.)
(i) Maintenance. All ladders shall be maintained in a safe condition. All ladders shall be inspected regularly, with the intervals between inspections being determined by use and exposure.
(j) Landing Platforms.
(1) When ladders are used to ascend to heights exceeding 20 feet (except on chimneys), landing platforms shall be provided for each 30 feet of height or fraction thereof, except that, where no cage, well, or ladder safety device is provided, landing platforms shall be provided for each 20 feet of height or fraction thereof. Each ladder section shall be offset from adjacent sections. Where installation conditions (even for a short, unbroken length) require that adjacent sections be offset, landing platforms shall be provided at each offset. [See Subsection (m)].
EXCEPTIONS: 1. Ladders in underground mines, those used primarily in construction operations, fire escape ladders, and ladders equipped with treads.2. Ladders on high-voltage transmission towers, smoke stack ladders, water tower ladders and similar fixed ladders on permanent installations which are used either infrequently or for emergency only provided the employee who uses the ladder is supplied with and wears an approved belt, with safety straps attached, which can be utilized if a rest period is required.
(2) Where an employee has to step a distance greater than 12 inches from the center line of the rung of a ladder to the nearest edge of structure or equipment, a landing platform shall be provided. The minimum step-across distance shall be 2 1/2 inches (Figure 7).
(3) All landing platforms shall be equipped with guardrails and toeboards, so arranged as to give safe access to the ladder. Platforms shall be not less than 24 inches in width and 30 inches in length.
(4) One rung of any section of ladder shall be located at the level of the landing laterally served by the ladder. Where access to the landing is through the ladder, the same rung spacing as used on the ladder shall be used from the landing platform to the first rung below the landing (Figure 10).
(k) Ladder Extensions. The side rails of through or side-step ladder extensions shall extend 3 1/2 feet above parapets and landings. For through ladder extensions, the rungs shall be omitted from the extension and shall have not less than 18 nor more than 24 inches clearance between rails (Figure 2). For side-step or offset fixed ladder sections, at landings, the side rails and rungs shall be carried to the next regular rung beyond or above the 3 1/2 feet minimum (Figure 3).
(l) Grab Bars. Grab bars shall be spaced by a continuation of the rung spacing when they are located in the horizontal position. Vertical grab bars shall have the same spacing as the ladder side rails. Grab bar diameters shall be the equivalent of the round-rung diameters.
(m) Ladder Safety Devices. Ladder safety devices may be used on tower, water tank, and chimney ladders over 20 feet in unbroken length in lieu of cage protection. No landing platform shall be required in these cases. All ladder safety devices such as those that incorporate life belts, friction brakes, and sliding attachments shall meet the design requirements of the ladders which they serve. [See subsection (c).]
(Title 24, Part 2, Section 2-3305(r))

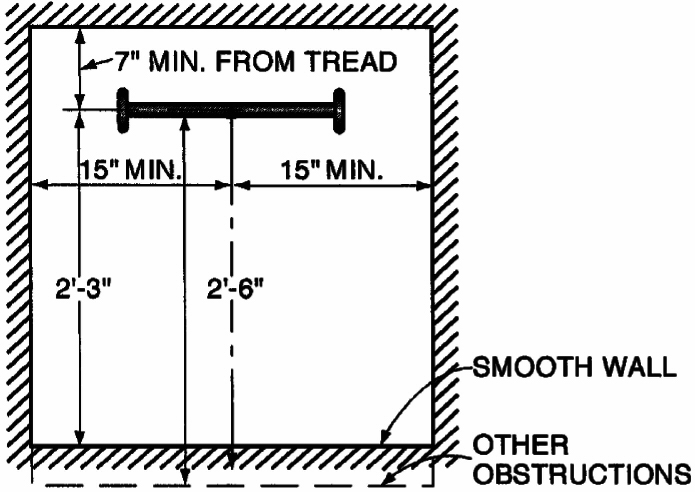

Figure 1 - CLEARANCE DIAGRAM FOR FIXED LADDER IN WELL
Figure 2 - ROOF LADDER
Figure 3 - OFFSET FIXED LADDER SECTIONS
Figure 4 - SUGGESTED DESIGN FOR RUNGS ON INDIVIDUAL-RUNG LADDERS
Figure 5 - MINIMUM LADDER CLEARANCE
Figure 6 - CLEARANCE FOR UNAVOIDABLE OBSTRUCTION AT REAR OF FIXED LADDER

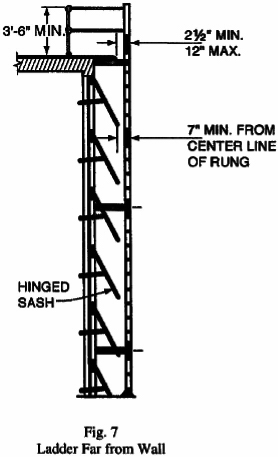

Figure 7 - LADDER FAR FROM WALL

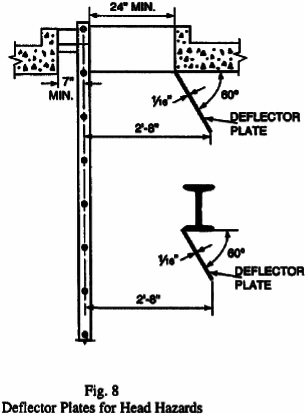

Figure 8 - DEFLECTOR PLATES FOR HEAD HAZARDS
Figure 9 - RELATIONSHIP OF FIXED LADDER TO A SAFE ACCESS HATCH
Figure 10 - CAGES FOR LADDERS MORE THAN 20 FEET HIGH
Figure 11 - CAGES-SPECIAL APPLICATIONS
Figure 12 - PITCH OF FIXED LADDERS

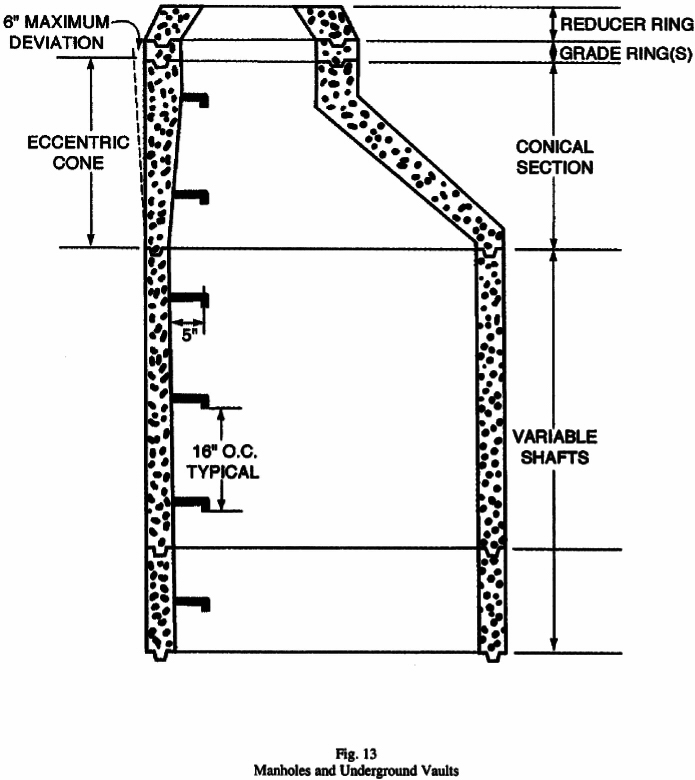

Figure 13 - MANHOLES AND UNDERGROUND VAULTS
NOTE: Authority cited: Section 142.3, Labor Code. Reference: Section 142.3, Labor Code; and Section 18943(b), Health and Safety Code.
